GARACORT BASE is a professional car coating, PPF installation, and imported vehicle maintenance shop serving the Kumagaya, Fukaya, and Hanazono areas of Saitama Prefecture.

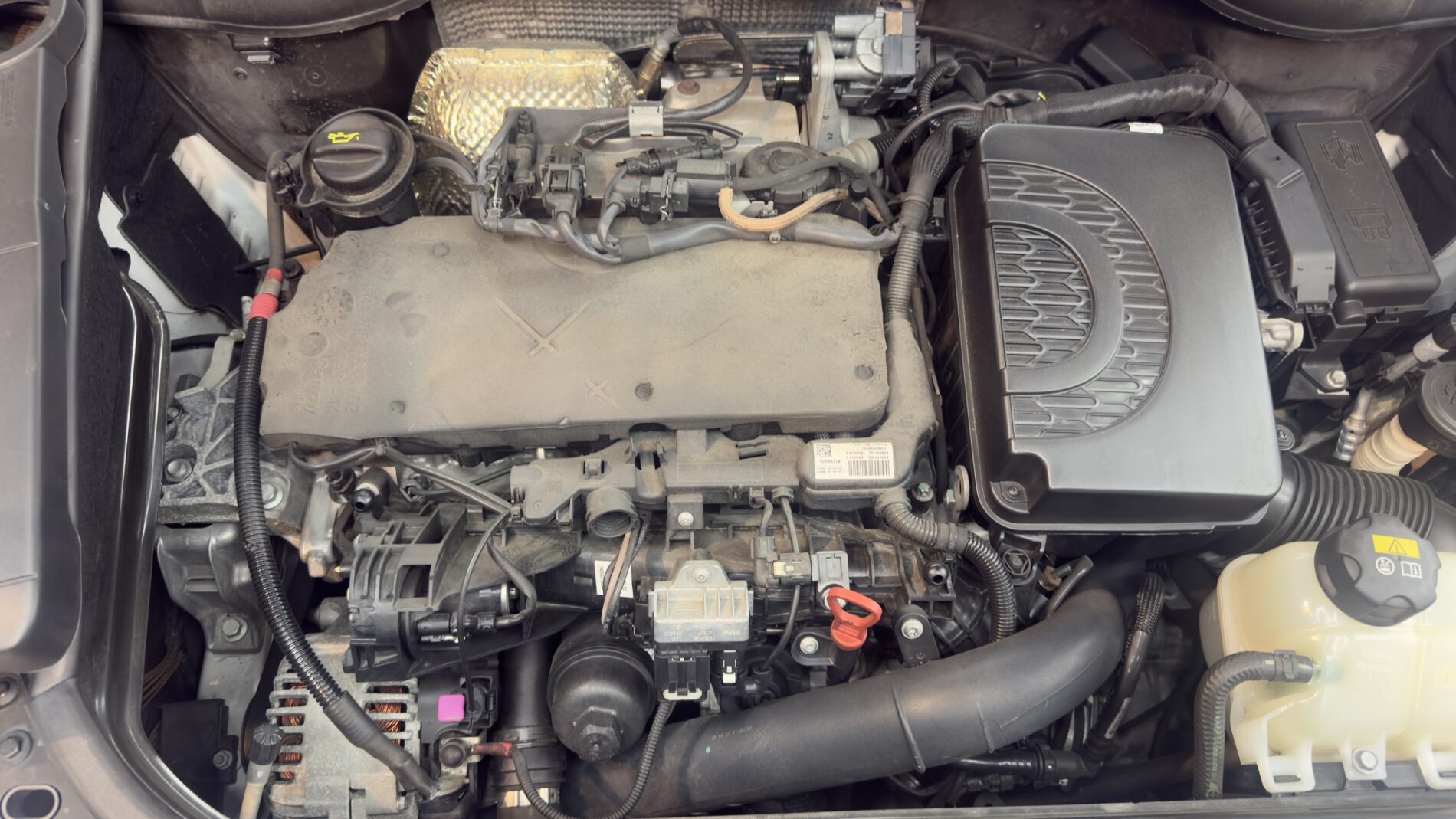

This time, we would like to introduce a repair carried out on a MINI Countryman R60 after its engine warning light came on✨
【Customer Request】
The customer visited us after the engine warning light came on and asked us to diagnose the problem.
At first, the vehicle did not feel noticeably different. However, it gradually began to hesitate while driving and eventually stalled, leaving it unable to continue running.
We immediately performed a fault diagnosis using a dedicated diagnostic scanner.
The onboard diagnostic system showed the following fault code:
3FF0 Air Mass Measurement Fault
This fault code may appear when the intake air volume cannot be measured correctly or when contamination has accumulated in the intake or EGR system.
To identify the exact cause, we carried out a detailed inspection of each related component🔍
【Inspection and Diagnosis】
As we continued the diagnosis, we discovered a large amount of carbon buildup throughout the EGR system and intake passages.
Diesel engines use an EGR system that recirculates part of the exhaust gas. Over a long period of use, carbon deposits can easily accumulate inside the system.
This contamination can prevent the intake air volume from being controlled correctly and is a common cause of the engine warning light coming on.
In this case, we determined that the problem originated in the EGR and intake systems, so we proceeded with disassembly and cleaning💪
【EGR Valve Disassembly and Cleaning】
We began by removing the EGR valve.
A large amount of carbon had accumulated inside the removed EGR valve💦
In this condition, the valve could not move properly or deliver its intended performance.
Using a dedicated cleaning solution, we carefully removed the carbon deposits from deep inside the component.
We also thoroughly cleaned the moving parts until they operated smoothly again✨
【EGR Cooler Disassembly and Cleaning】
Next, we removed the EGR cooler.
A significant amount of carbon originating from the exhaust gas had also accumulated inside the EGR cooler.
If the internal passages become blocked, exhaust gas flow is restricted, which can cause poor engine performance and warning lights.
We thoroughly cleaned the inside of the cooler and restored the original exhaust gas passages🧼
【Intake Manifold Disassembly and Cleaning】

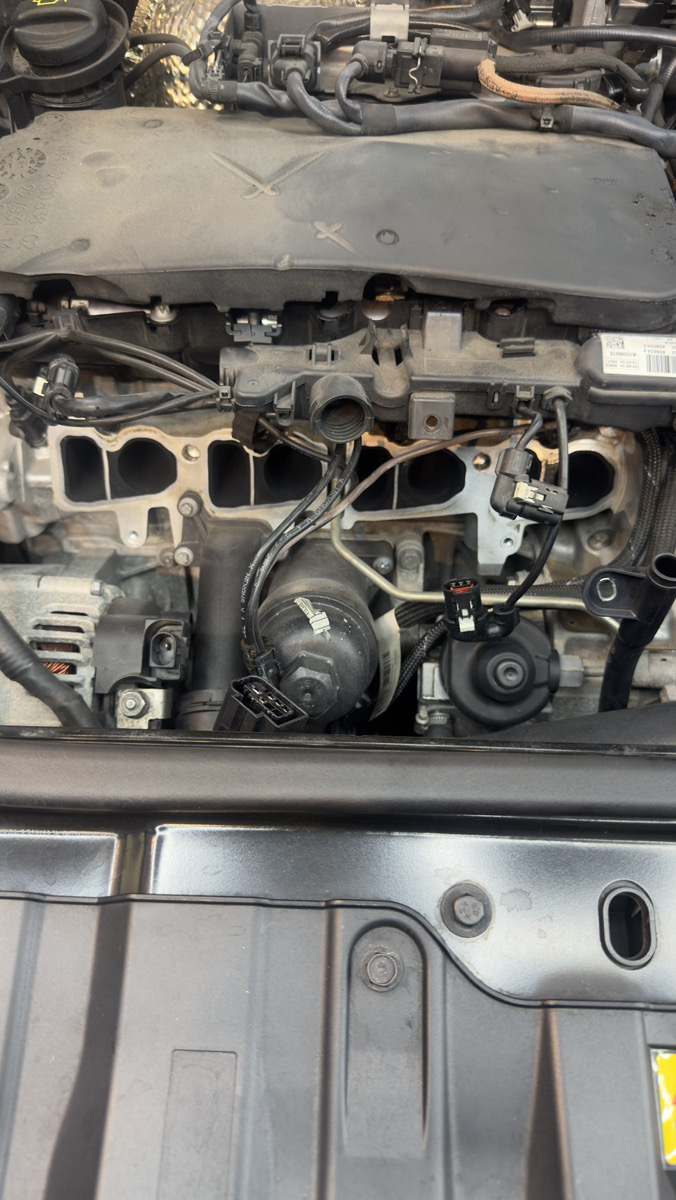

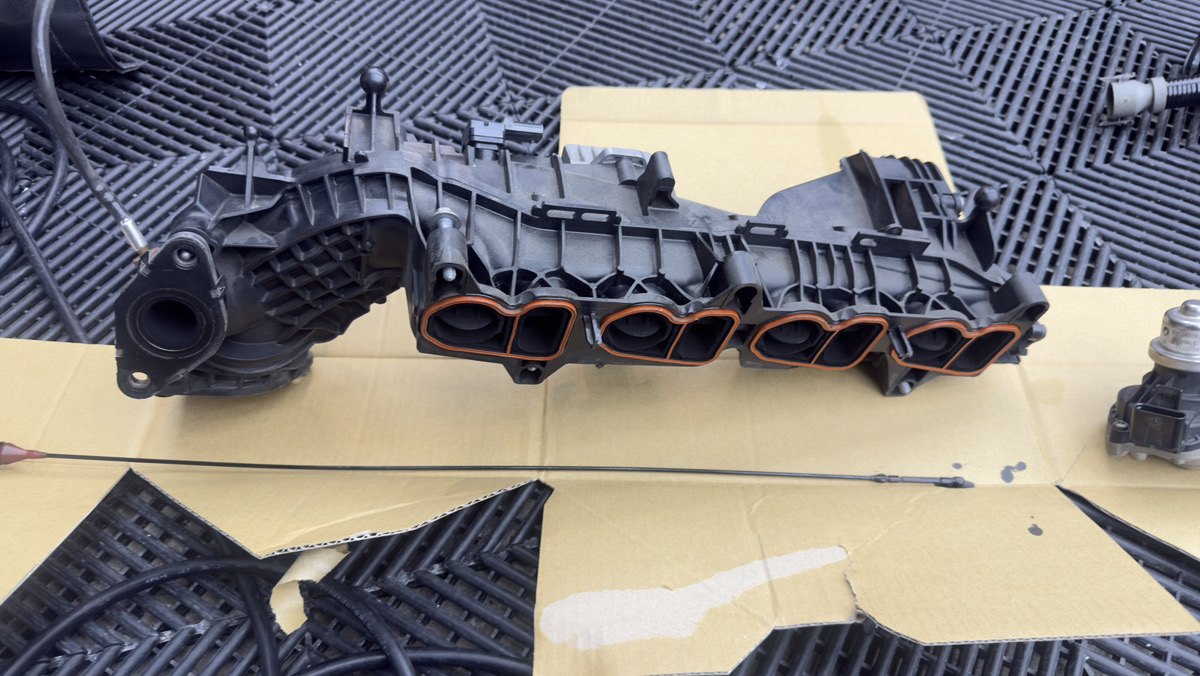

We then removed the intake manifold.
Carbon had accumulated throughout the intake passages and was restricting the flow of air into the engine.
We carefully cleaned the inside of the intake manifold to improve intake efficiency.
Carbon deposits were removed even from the narrow internal passages, restoring the system’s original intake performance✨
【Reassembly and Final Inspection】
After cleaning each component, we carefully reassembled the system.
Once everything had been reinstalled, we connected the diagnostic scanner again and cleared the stored fault code.
We started the engine and checked the live data from each related system.
A road test was also carried out to confirm smooth engine response, the absence of unusual noises, and that the warning light did not come on again🔍
The diagnostic readings returned to their normal ranges, and the 3FF0 air mass measurement fault was successfully resolved✨
【Result After Repair】
After the repair was completed, the customer also took the vehicle for a test drive.
They were extremely pleased and commented, “The engine response feels much better now, so I feel relieved!”😊
【Regular Inspection of the EGR and Intake Systems Is Recommended】
The EGR valve, EGR cooler, and intake manifold are particularly prone to carbon buildup in diesel engines.
As the contamination accumulates, it can cause not only warning lights, but also reduced fuel economy, poor acceleration, and other performance problems.
If a warning light comes on, we recommend having the vehicle inspected and repaired promptly rather than continuing to drive it without diagnosis💡
【Imported Vehicle Maintenance at GARACORT BASE】
In addition to car coatings, GARACORT BASE also provides inspections, maintenance, and fault diagnosis for imported vehicles.
Please feel free to contact us about problems specific to imported vehicles, including BMW, MINI, Mercedes-Benz, Audi, and Volkswagen models🚗
Using dedicated diagnostic equipment, we thoroughly identify the cause of the problem before recommending the most suitable repair.
【Contact Us for Maintenance Consultations and Quotations】
GARACORT BASE provides a wide range of services, including fault diagnosis, imported vehicle maintenance, car coatings, and PPF installation.
Whether your engine warning light has come on, your MINI is not running correctly, or you are looking for a reliable workshop for your imported vehicle, please feel free to contact us🙌
We sincerely look forward to welcoming customers from the Kumagaya, Fukaya, and Hanazono areas, as well as from other locations inside and outside Saitama Prefecture🌟
Reservations and enquiries are accepted through our official LINE account or by telephone📞
